Home / Catalog / Spherical Roller Bearings / SKF / BS2-2319-2RS5/VT143

Technical Specifications

Inner Diameter (d)	95 mm
Outer Diameter (D)	200 mm
Width (B)	77 mm
Dynamic Load Rating (C)	699 kN
Static Load Rating (C₀)	765 kN
Limiting Speed (Oil)	1700 rpm
Number of Rows	2
Cage Material	Sheet metal
Seal / Shield Type	Seal on both sides
Internal Clearance	CN
Weight	11.2 kg
Bore Type	Cylindrical
Sealing	Seal on both sides
Num Rows	2
Lubricant	Grease
Sealing Type	Contact
Clearance Class	CN
Radius Of Fillet	ra
Chamfer Dimension	r1,2
Relubrication Feature	With
Maximum Initial Clearance	100 µm
Minimum Initial Clearance	60 µm
Diameter Of Shaft Abutment	da
Tolerance Class For Run Out	P5
Width Of Lubrication Groove	b
Diameter Of Housing Abutment	Da
Diameter Of Lubrication Hole	K
Tolerance Class For Dimensions	Normal
Shoulder Diameter Of Inner Ring	d2
Locating Feature Bearing Outer Ring	Without
Shoulder Recess Diameter Of Outer Ring	D1
Iso Tolerance Class For Geometrical Tolerances	P5

SKF BS2-2319-2RS5/VT143 Spherical Roller Bearing With Integral Sealing dxDxBmm

Name: SKF BS2-2319-2RS5/VT143 Spherical Roller Bearing With Integral Sealing dxDxBmm
Brand: SKF
SKU: BS2-2319-2RS5/VT143

Related Products

24140CCK/W33

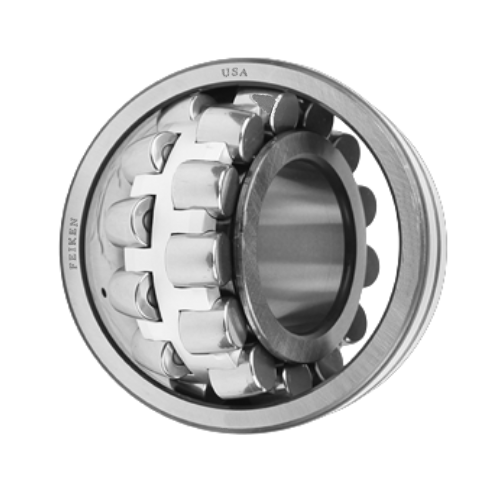

24140CCK/W33 Spherical Roller Bearing 200x340x140mm
