Part Number	NJ 232 ECM/C3
Brand	SKF
Category	Cylindrical Roller Bearings

Technical Specifications

Inner Diameter (d)	160 mm
Outer Diameter (D)	290 mm
Width (B)	48 mm
Dynamic Load Rating (C)	585 kN
Static Load Rating (C₀)	680 kN
Reference Speed (Grease)	2400 rpm
Limiting Speed (Oil)	2600 rpm
Number of Rows	1
Cage Material	Machined brass
Seal / Shield Type	Without
Internal Clearance	C3
Weight	14.4 kg
Bore Type	Cylindrical
Coating	Without
Sealing	Without
Num Rows	1
Lubricant	None
Bearing Part	Complete bearing
Loose Flange	None
Clearance Class	C3
Tolerance Class	Normal
Relubrication Feature	Without
Number Of Flanges Inner Ring	1
Number Of Flanges Outer Ring	2
Axial Displacement Capability	In one direction
Locating Feature Bearing Outer Ring	Without

SKF NJ 232 ECM/C3 Single Row Cylindrical Roller Bearing, Nj Design 160x290x48mm

Name: SKF NJ 232 ECM/C3 Single Row Cylindrical Roller Bearing, Nj Design 160x290x48mm
Brand: SKF
SKU: NJ 232 ECM/C3

Related Products

NN3026 TN9/SP

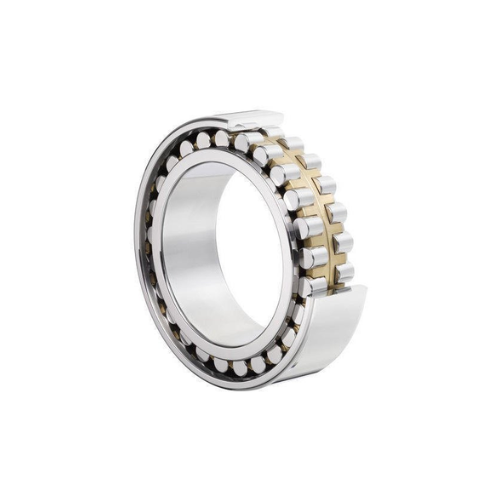

FEIKEN NN3026 TN9/SP Cylindrical Roller Bearing 130x200x52mm
